FEATURES:
GENERAL INFORMATION ::
E cores are less expensive as compared to other cores, and may have the advantages of simple bobbin winding plus easy assembly. Gang winding is possible for bobbins used with these cores. E cores do not, however, offer self-shielding. E cores are popular shapes due to their lower cost, ease of assembly and winding, and the ready availability of a variety of hardware.
TYPICAL CHARATERSTICS ::
Magnetics Shielding : External magnetic field generated due to exposed winding
Cost of Core : Low
Cost of Winding & Assembly : Low
Heat Dissipation : Very Good
Uniform Cross Section : Yes
APPLICATIONS ::
Switch Mode Power Supplies (SMPS)
Audio Transformers
Impedance Matching
Sensing Transformers
Signal Distribution Transformers for communications.
Pulse Transformers
Isolation Transfomers

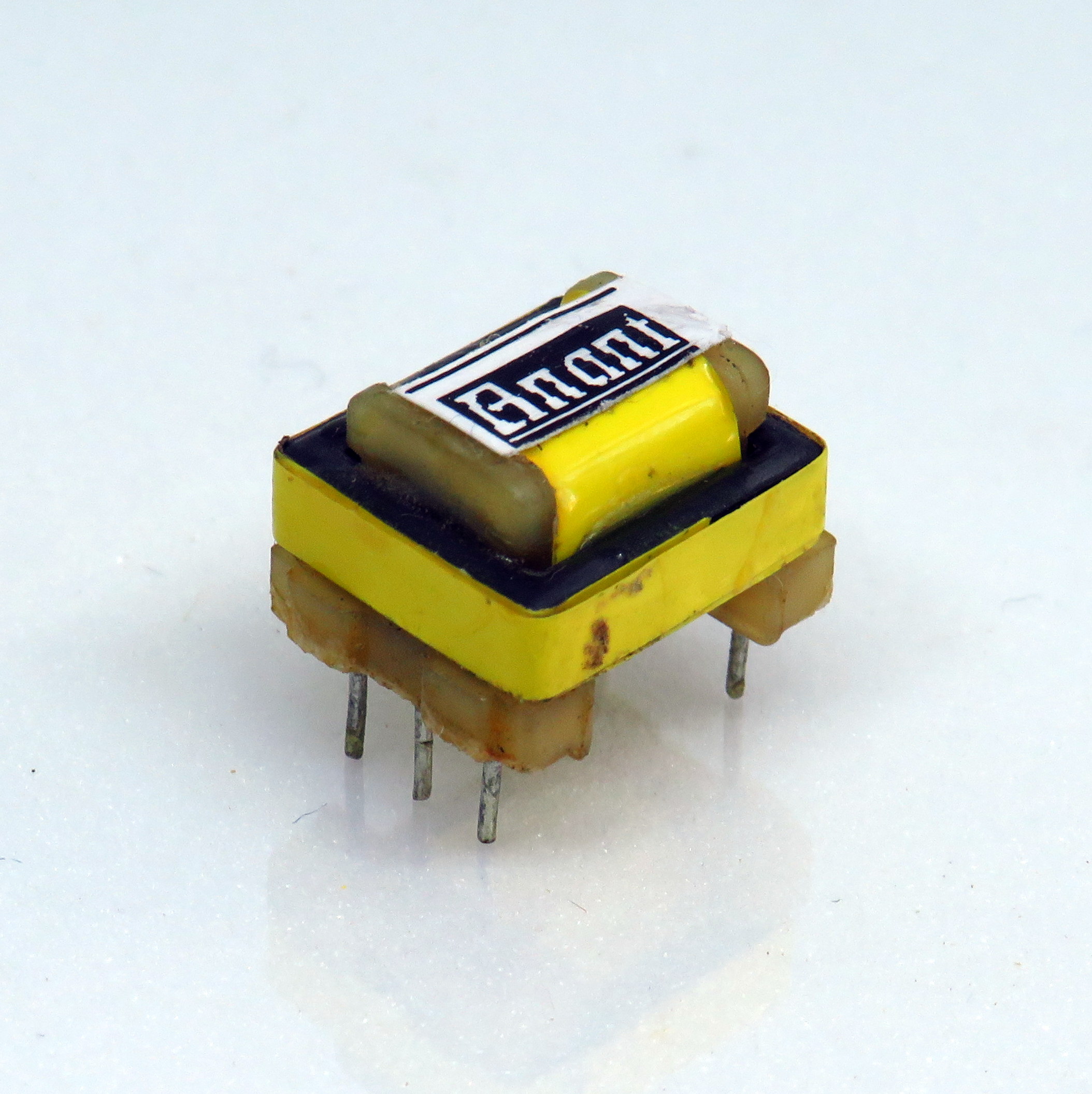

CORE DETAILS ::
|
Core Size
|
E/EF 12
|
|
Core Base Material
|
MnZn
|
|
Core Le
|
27mm
|
|
Core Ae
|
12.4mm2
|
|
Mounting
|
Pin Through Hole
|
|
Package Height
|
10mm (typ)
|
|
Package Length
|
15mm (typ)
|
|
Package Width
|
13mm (typ)
|
Speak with us for a quote and let our engineering team work in collaboration with your team for your desired quality and reliable High Frequency Low Voltage Transformer needs as per your design and requirements.
