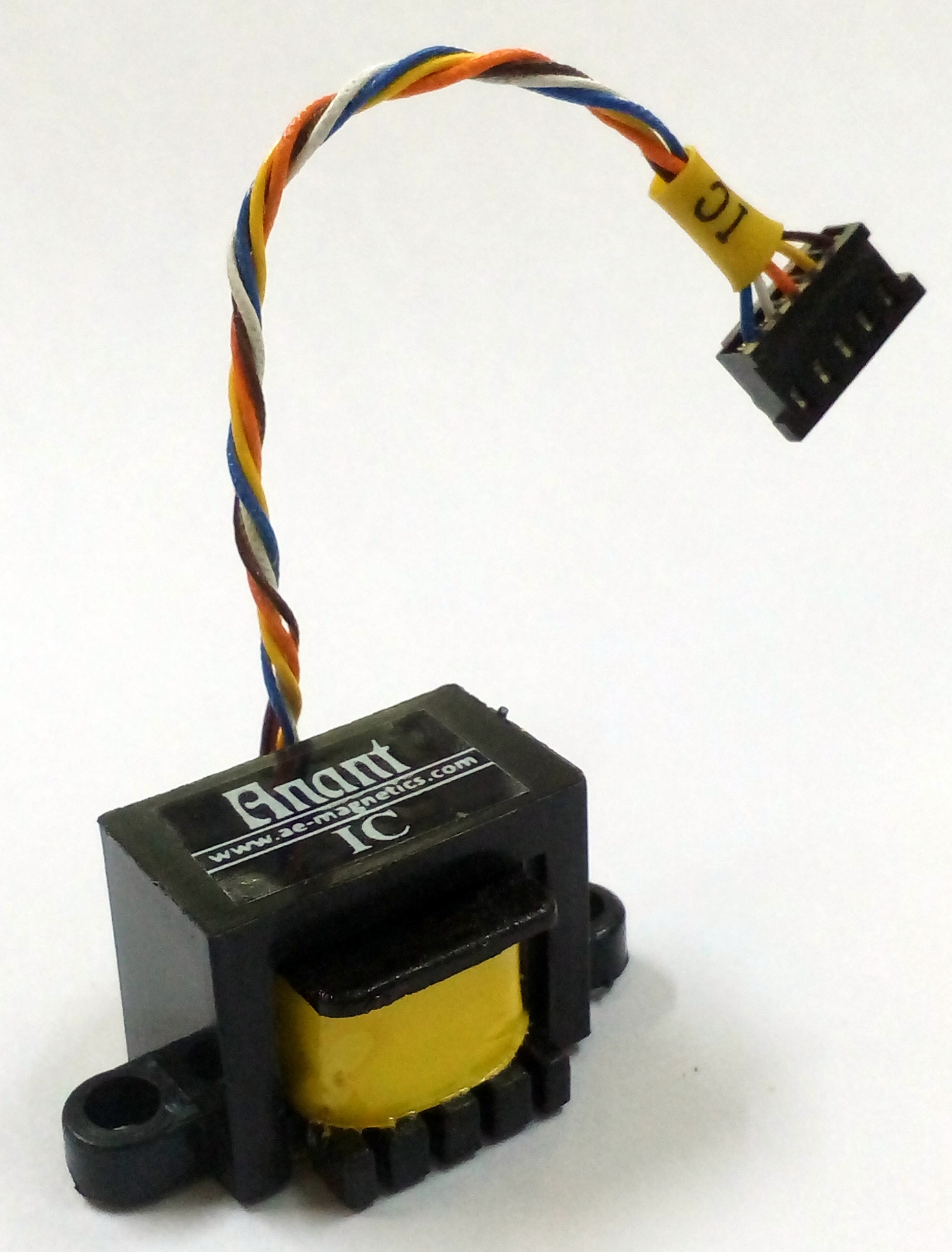

Transformer EI-28 (Clamp Mount)

GENERAL INFORMATION ::

Control Transformers from Anant are designed to control supply voltages to circuits, providing greater safety to operators. Our transformers isolate the circuits from power and lighting circuits.

Anant’s control transformers are designed to produce a high level of secondary voltage stability during brief periods of overload condition, otherwise typically known as “inrush current”.

Control Transformers may be Step-Up, Step-Down, Isolation and auto transformers type. We, at Anant, manufacture both single phase and three phase type.

Anant’s control transformers incorporate high-quality insulating materials. This insulation is used to electrically insulate turn to turn windings, layer to layer windings, primary to secondary windings and ground. Electromagnetic shielding with copper foil is also done for critical applications such as in medical electronics and avionics. Control transformers are varnished and oven-cured thereby offering protection from the environment.

TYPICAL CHARATERSTICS ::

Copper Windings - Standard on all units.
130°C / 155°C / 180°C Insulation class.
Versatile – Custom manufactured as per customer’s requirements.
Silicon Steel Lamination - Minimize core losses and increase efficiency.
Excellent Regulation - Designs incorporate precision wound coils layers.
High Efficiency and Heat Dissipation - Every coil is precision bobbin-wound.
Versatile Mounting.

Test & Measurement Instruments

Communication Networks

TRANSFORMER TYPES ::

Step-Up / Step-Down Transformer

Sensing Transformers

Isolation Transformers

TRANSFORMER DETAILS ::

PVC wire Flying Leads

Electrostatic Shielded

Speak with us for a quote and let our engineering team work in collaboration with your team for your desired quality and reliable Low Frequency Low Voltage Transformer needs as per your custom designs and requirements.

Core Size	EI-28
Core Base Material	Silicon Steel
Power Handling	up to VA
Mounting	Clamp Mount
Wire Termination	PVC wire Flying Leads Wire Harness Terminal Blocks
Phase	Single
Frequency	50Hz / 60Hz
Winding Material	Copper
Electrostatic Shielded	No
Enclosure	No
Cooling	Air / Dry
